Choke Valves

Valves

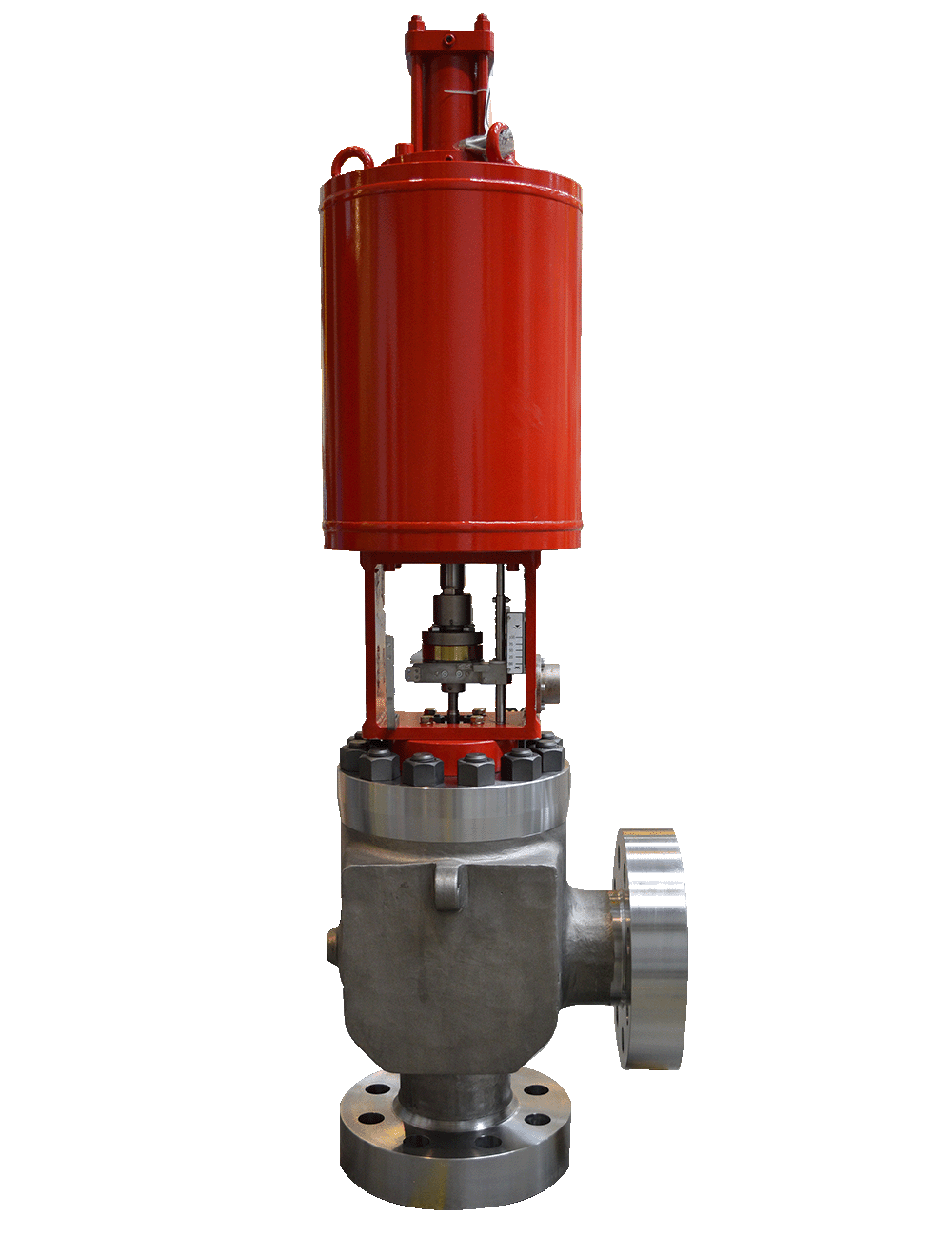

Choke Valve

Ringo Choke Valve is designed for precise flow and pressure control in wells and severe industrial processes. It features a high-erosion-resistant interchangeable trim, making it a robust and adaptable solution for the most demanding conditions.

Features and MaterialsDesign and Applications

Features

  • Variable Restriction Control: Regulates flow and pressure using calibrated discs or interchangeable “beans.”
  • Extreme Durability: Trim in Stellite or tungsten carbide for maximum erosion resistance and long service life.
  • Flow Stability: Maintains stability under variable flow conditions and absorbs pressure shocks effectively.
  • High Precision: Provides exceptional control accuracy (<±1%), crucial for process regulation.
  • Automation Compatibility: Easily integrated into automated systems for remote operation.
  • Minimization of Adverse Phenomena: Optimized design minimizes cavitation and internal erosion.
  • Quick Maintenance: Interchangeable trim allows replacement without removing the valve body.
  • Reinforced Sealing: Ensures zero external leakage for improved safety and compliance.
  • Wide Control Range: Provides precise throttling from 0% to 100% open.
  • Regulatory Compliance: Meets API 6A and API 16C standards, ensuring suitability for oil & gas applications.

Body Design

  • Robust body capable of withstanding extreme pressure and abrasive conditions.
  • Available in monoblock or modular designs with flanged or threaded connections.
  • Optimized internal geometry minimizes turbulence and wear for precise control.
  • Complies with API 6A and API 16C standards, guaranteeing reliability.

Construction Materials

  • Body Materials: Carbon Steel (A105, A216 WCB), Stainless Steel (304, 316), Duplex/Super Duplex, Nickel Alloys (Inconel, Hastelloy), and special erosion-resistant materials.
  • Trim Materials (Internal): Internal components in hardened stainless steel or coated with Stellite/tungsten carbide, with seats and seals in high-temperature/pressure-resistant materials and special coatings for durability.

Trim Design

  • Adjustable or multi-position discs provide precise throttling control.
  • Manufactured from ultra wear-resistant materials (Stellite, tungsten carbide) for long service life.
  • Advanced sealing systems prevent leakage and maintain stable performance.
  • Interchangeable trim facilitates quick maintenance and adaptation to operating conditions.

Applications

  • Oil Production: Precise flow regulation in oil and gas wells.
  • Processing Units: Control of flow in crude separation and treatment processes.
  • Enhanced Recovery: Gas/water injection control for EOR processes.

Information

General Brochures

BROCHURE PRODUCTS:
Choke Valves / Technical Data


[EN]

Certificates

Ringo Choke Valves are engineered for precise flow and pressure control in wells and demanding industrial processes, featuring high-erosion-resistant trim made from Stellite or tungsten carbide for long service life under abrasive conditions.

Their design ensures exceptional accuracy, stable flow, and effective pressure shock absorption, while advanced sealing and interchangeable trim enable zero external leakage and quick maintenance without removing the valve body.

Compatible with automated control systems and built from robust materials, these valves comply with API 6A and API 16C standards, making them ideal for oil and gas production, processing units, and enhanced recovery operations.
